AX / D365FO – Create a Tile in a D365FO Workspace with X++

There are two ways through which we can create tile one by personalizing form and another through code. In this example we’ll use code

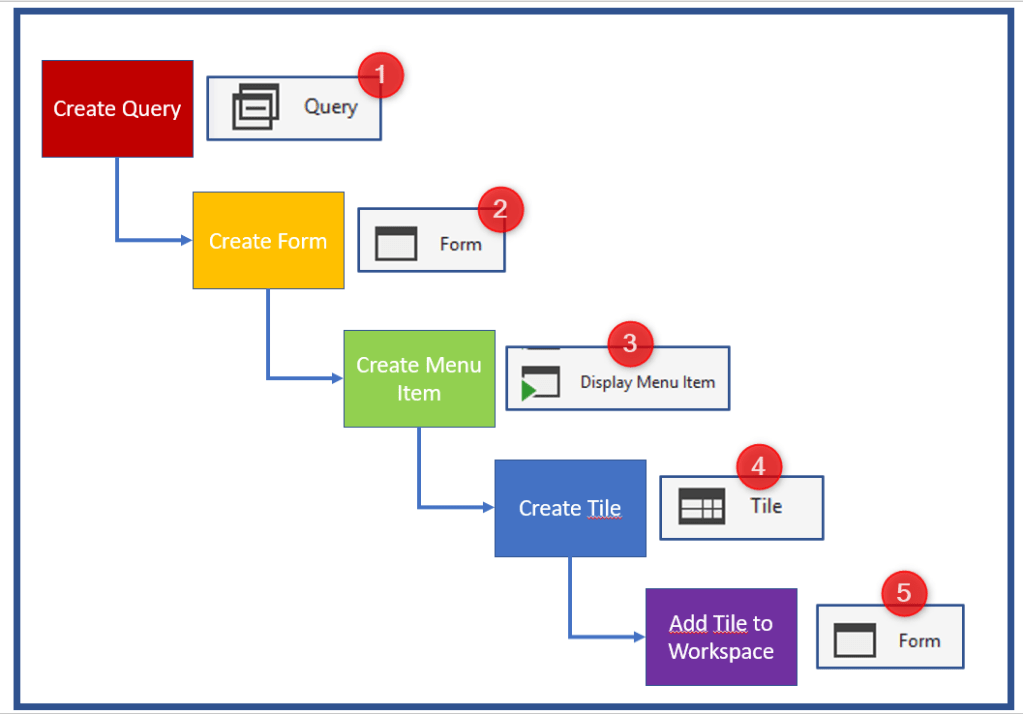

The diagram below summarizes the operations we will perform to add a tile to a workspace

These are the steps we’ll do :

  • Create an AOT Query object
  • Create a simple list form to show the query results
  • Create a menu item to call the form
  • Create a tile to call the menu item
  • Add the tile to a workspace

Create an AOT Query object

Create a project and add a query called “DeliveredSalesOrdersQuery

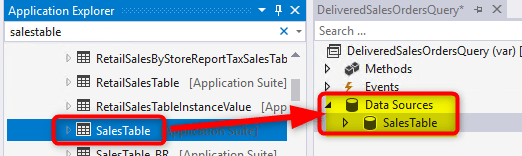

Add SalesTable as datasource in “DeliveredSalesOrdersQuery”.

Set dynamic fields property to “Yes”

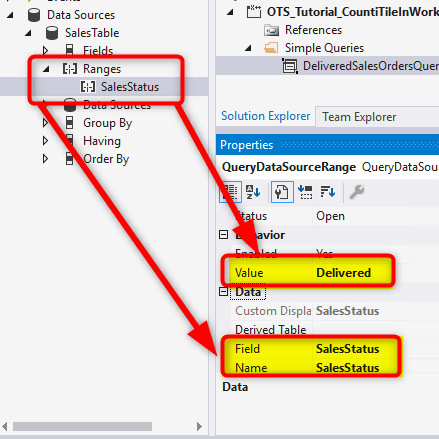

Add range in it for showing sales orders whose status is delivered.

Save the Query


Create a simple list form to show the query results

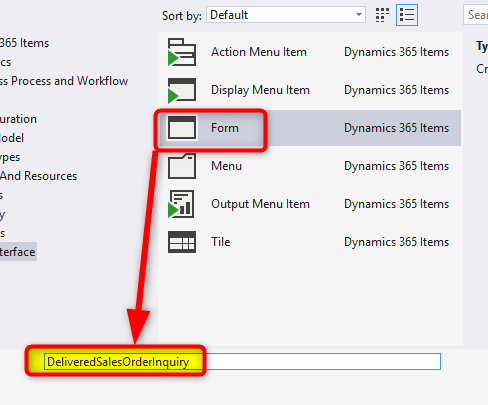

Add a Form object and call it “DeliveredSalesOrderInquiry

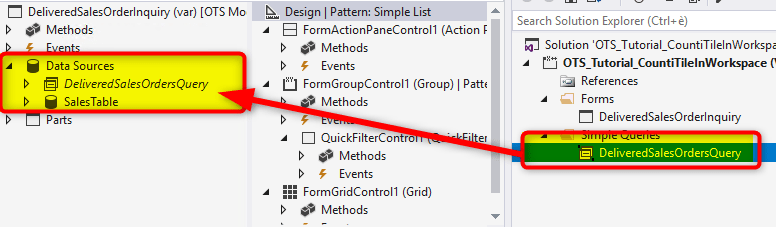

Add DeliveredSalesOrdersQuery as Form Data Source

Apply “Simple list” pattern

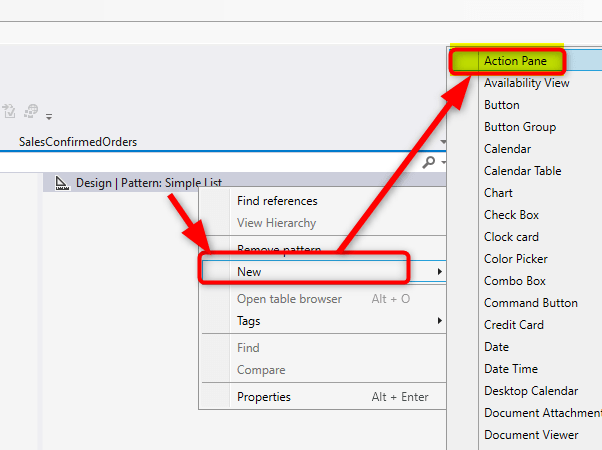

Add Action pane

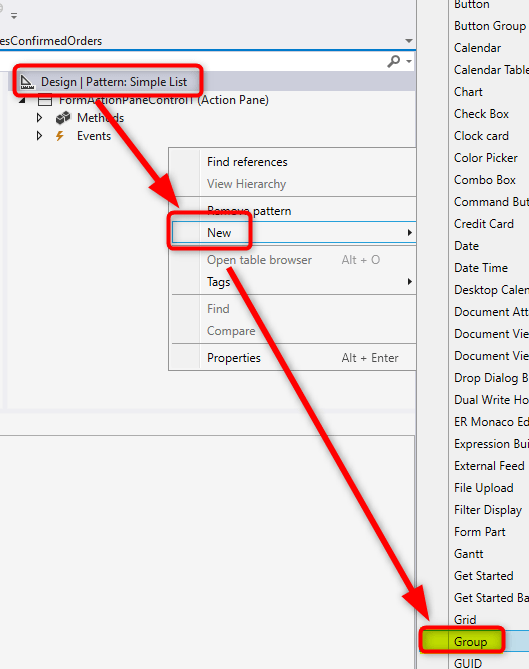

Add group

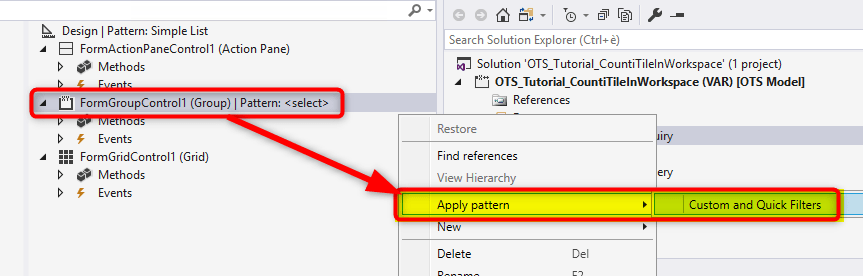

Apply “Custom and Quick filters” pattern to the form group created before

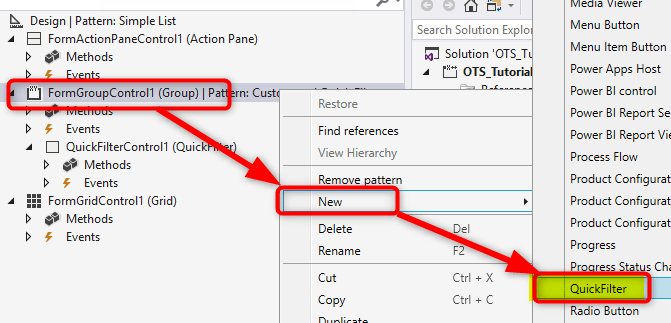

Add Quick filter to the form Group created before

Add grid to the form

Add the fields that will be show in the form

Save the form

Create a menu item to call the form

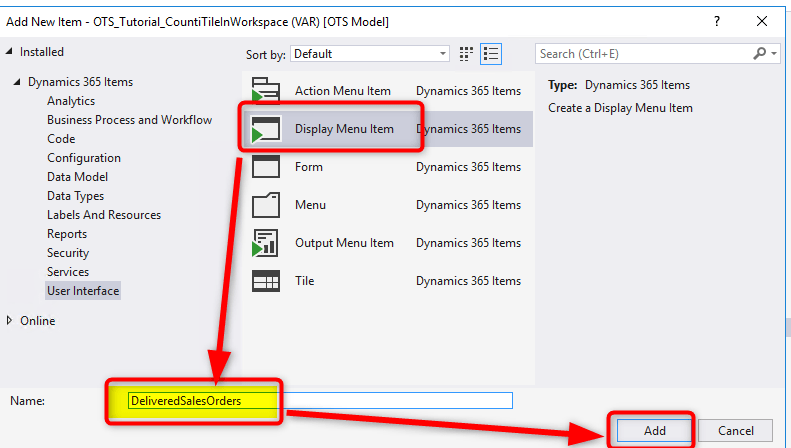

Add a display menu item and call it “DeliveredSalesOrders

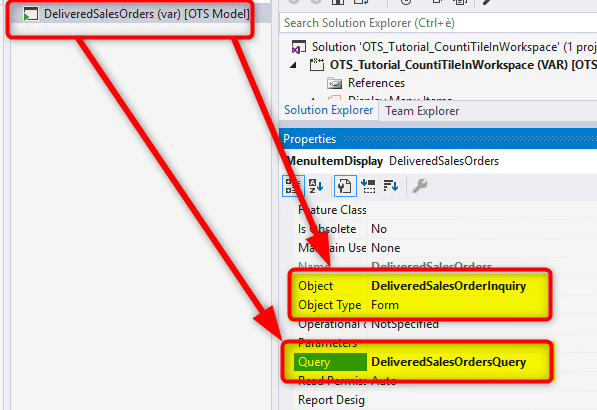

Set following properties on menu item

Object : DeliveredSalesOrderInquiry (The form creeated before)

Object type : Form

Query : DeliveredSalesOrderQuery (the Query created before)

Create a tile to call the menu item

Add a new tile and call it “DeliveredSalesOrderTile

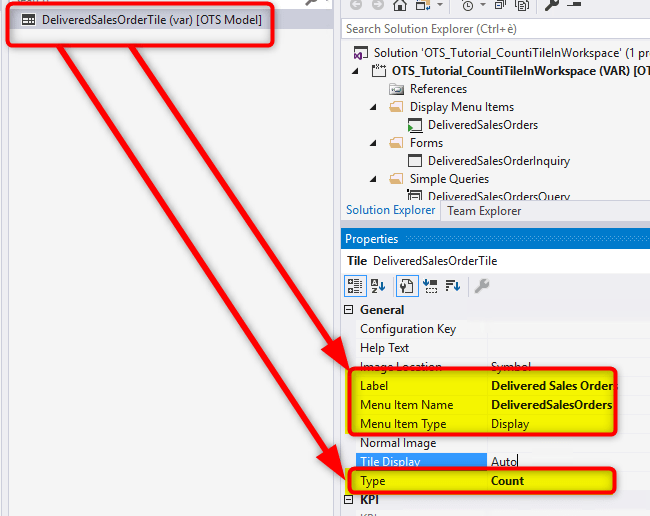

Set following properties on tile :

Label : “Delivered Sales Orders”

Menu item Name : “DeliveredSalesOrders”

Menu item type : “Display”

Type : “Count” (this will show the total number of records as a result of the query as a preview in the Tile)

Add the tile to a workspace

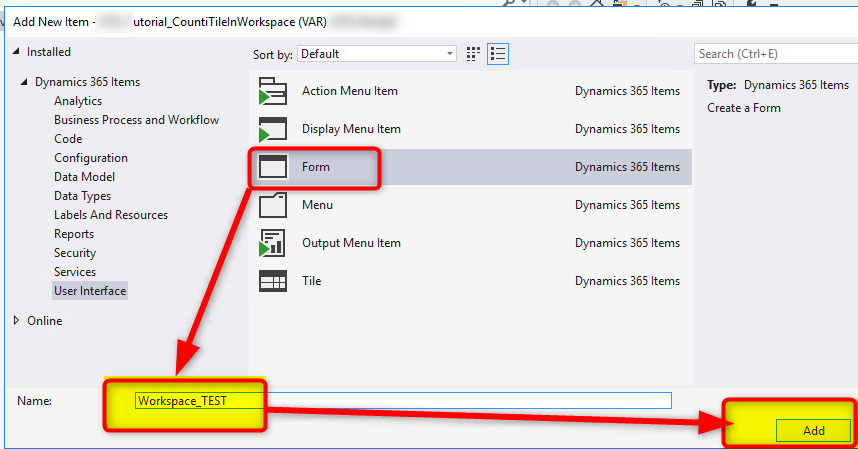

First let’s create a new simple Workspace and call it “Workspace_TEST

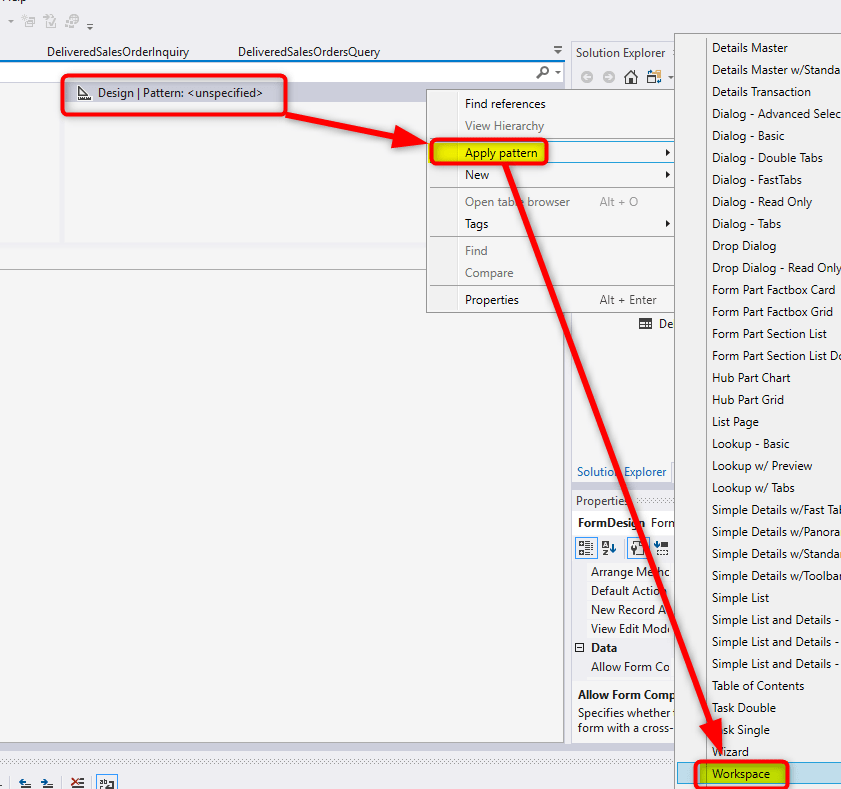

Apply “Workspace” pattern

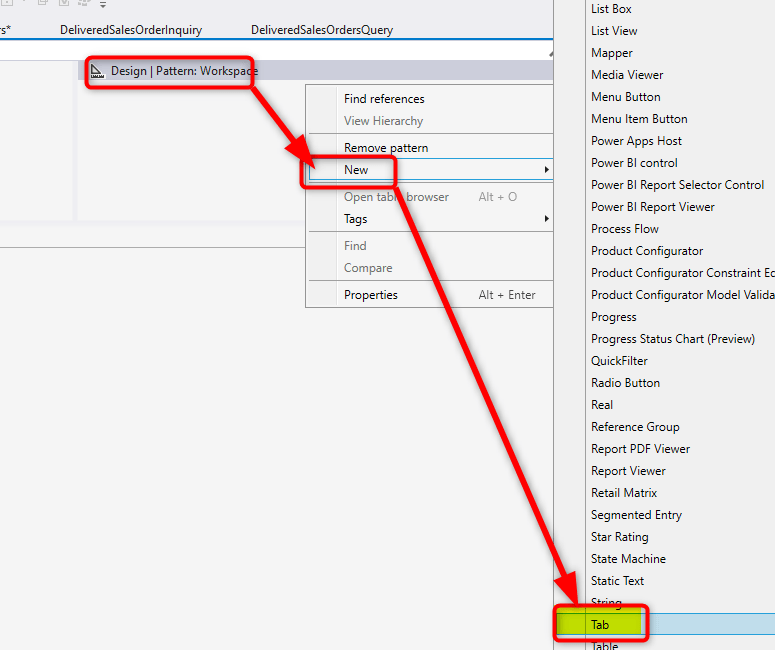

Add Tab

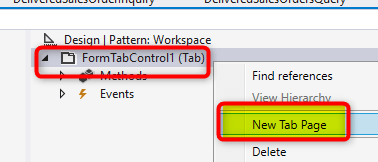

Add New tab page to Tab control

Apply “Tiles” pattern to Tab page

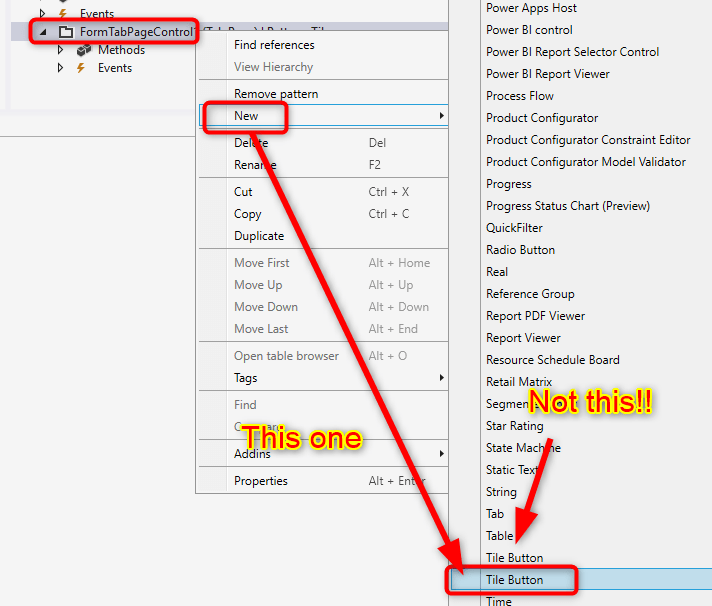

Add Tile button

There are 2 different tiles buttons, use the second one

Set these propertie to the Tile button

Tile : “DeliveredSalesOrderTile” (The tile created in the before steps)

Tile Display : Auto

Now let’s test our Tile. To do that you can add the workspace inside a menu or simply Set it as Startup object in your project.

So run the project by pressing Start button.

By default the form will open in DAT legal entity, so change it with your work company in the address bar

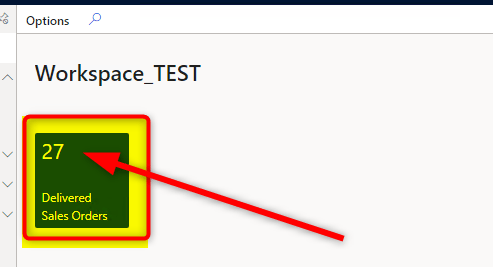

THis the result. The total record numbers are shown as a preview

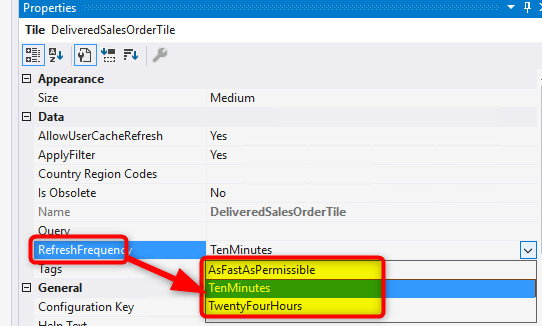

By default the refresh time interval is 10 minutes, but you can change by changing the RefreshFrequency property of the tile object

Or simply by doing a manual refresh pressing “Begin update now” button

By pressing the Tile button you’ll be redirected to the form
