AX – D365FO – Create a “Simple Details w/Standard Tabs” Form

First create a new Table “Al0VendorSearchCriteria”

• AccounNum is take from VendTable.accountNum
• StatesId is of type Int64
• Al0VendorActicivityId is of type Int64 (taken from another custom table that could be seen in my article : https://d365ffo.com/2021/07/04/ax-d365fo-create-a-simple-and-detail-tree-form/

Create a relation betewwn Al0VendorSearchCriteria and Al0Activity

Create Extended data types for the 2 fields

Add 2 field s to the AutoIdentification Field groups

Create an extension of LogisticAddressState and add a new Filel group and name i “Al0CountryRegionId_stateId” nd add 2 fields : CountryRegionId and StateID

Create a new form of type Simple and Details w/standard Tabs

Start create third tab

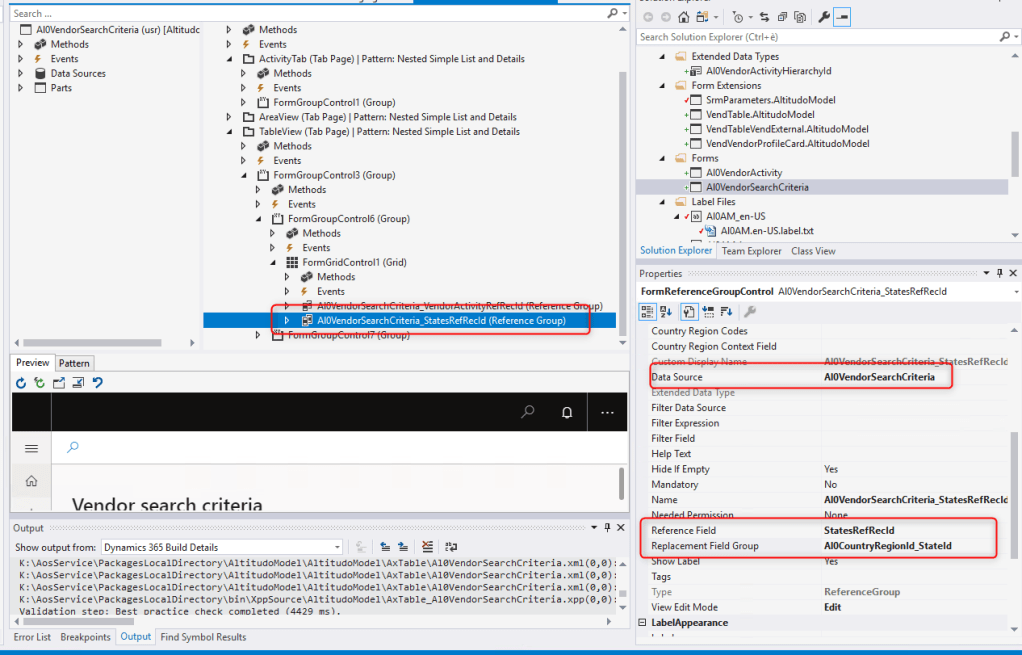

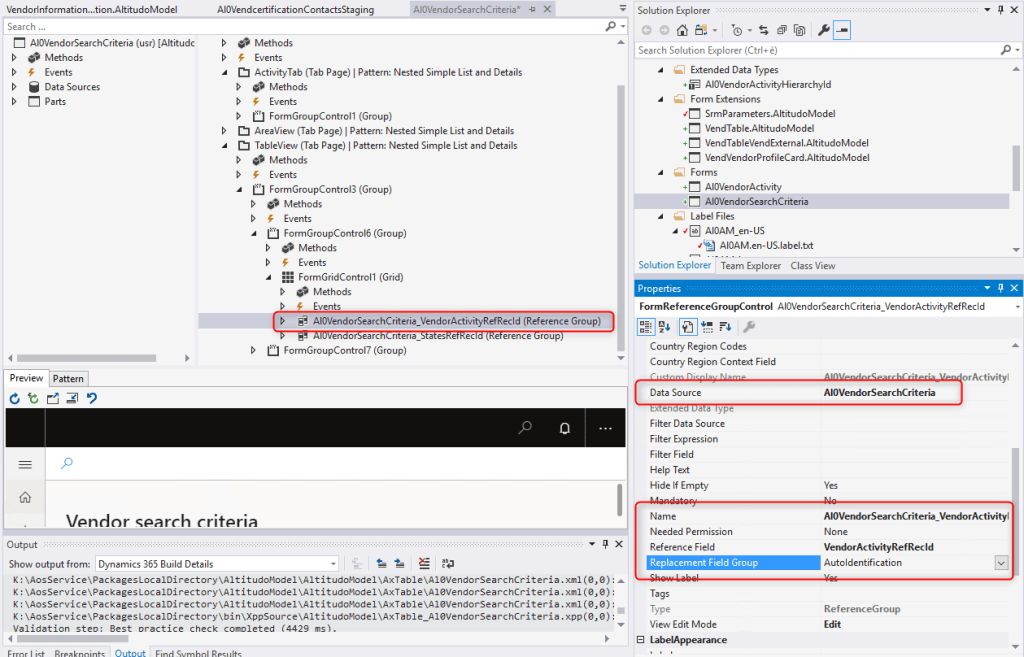

Add data source Al0VendorSearchCriteria

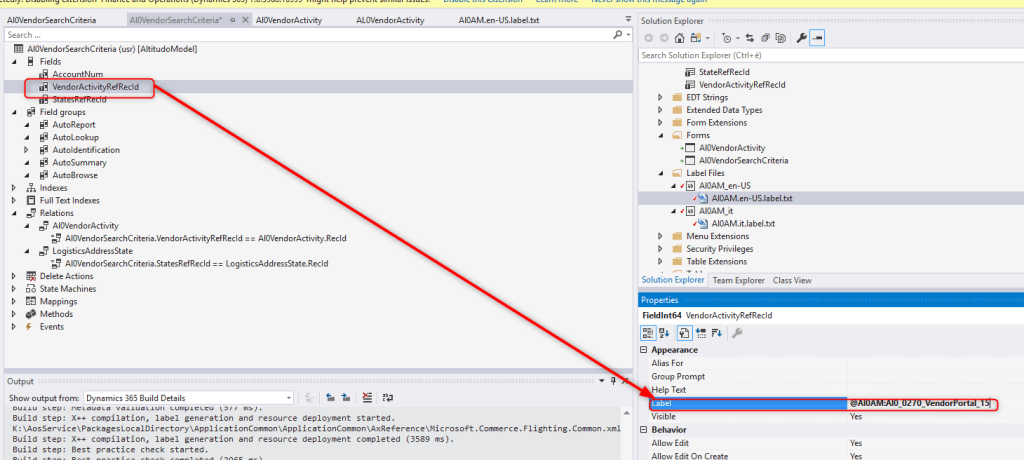

Insert labels to the table fields

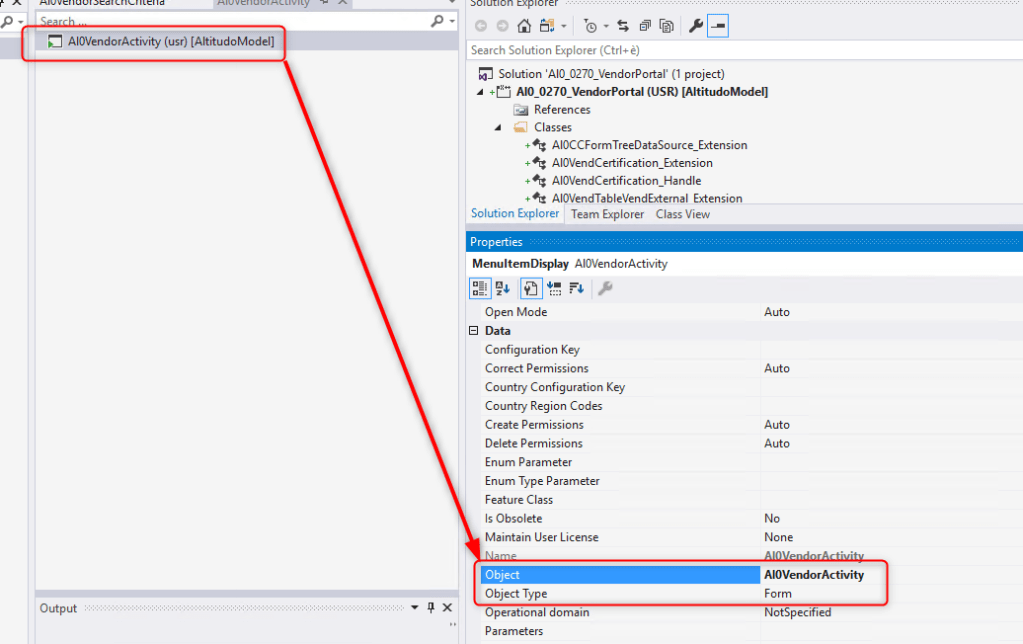

Now create a menu item to call the form

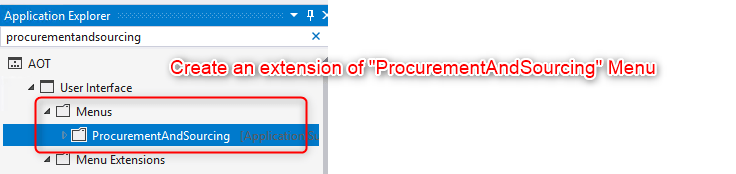

Creaete an extension of “ProcurementAndSourcing” Menu

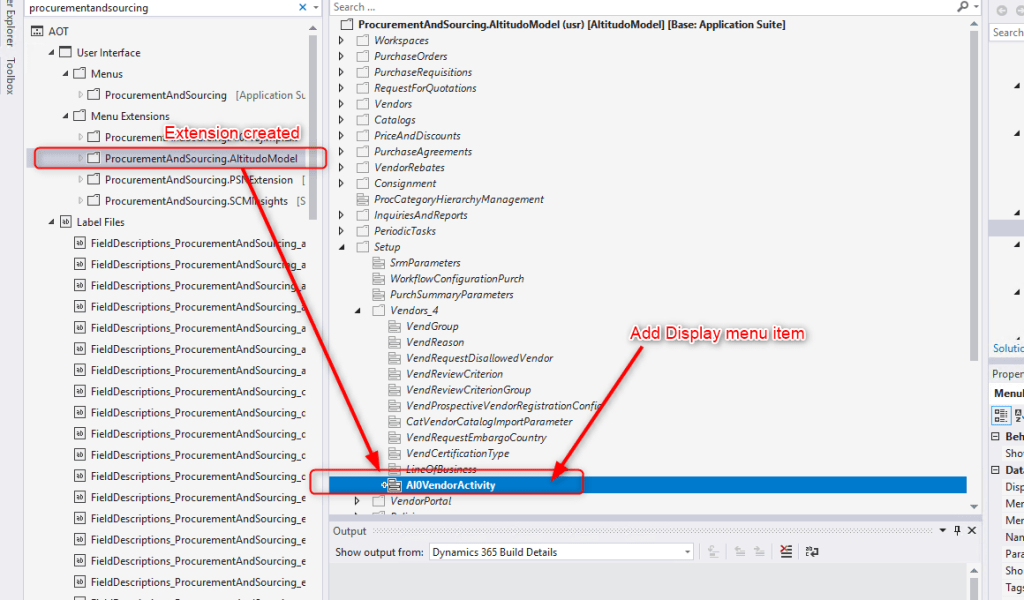

Add Display menu item to the extension

This is the result we will obtain

This is the result we will obtain

Add a new menu item button to the “Vendor information” (VendVendorProfileCard) Form

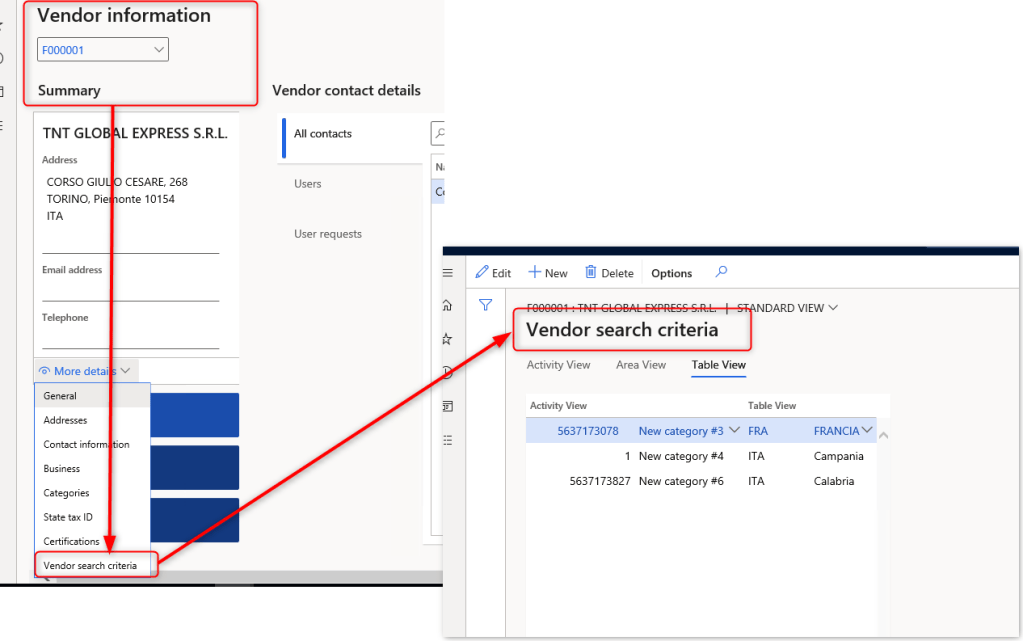

This is the result we will obtain
