AX / D365FO – Create a “Table of Contents” Form Pattern

This is an example of “Table of contents” form.
This kind of pattern is very useful to store parameters data.

Let’s see how to create a new one.

• Create a new Form in Visual Studio
• Apply “Table of contents” pattern

• Give it a name (eg.Parameters)


• Add new Tab


• Add new Tab Page


• Add new Group

• Add new Tab

• Add new Static Text

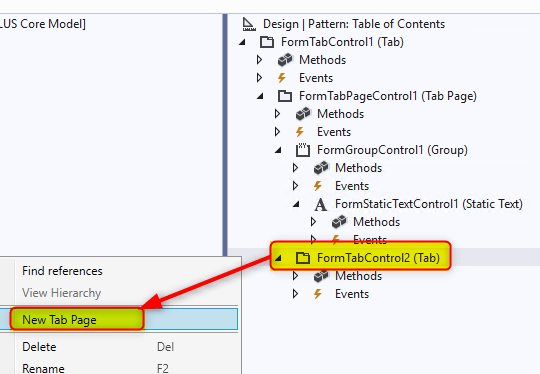

• Add new Tab page


• Now let’s add a new grid to manage a dtata soucre records

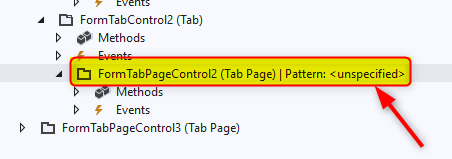

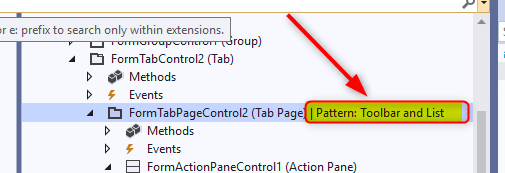

• Specify the “Toolbar and List” pattern

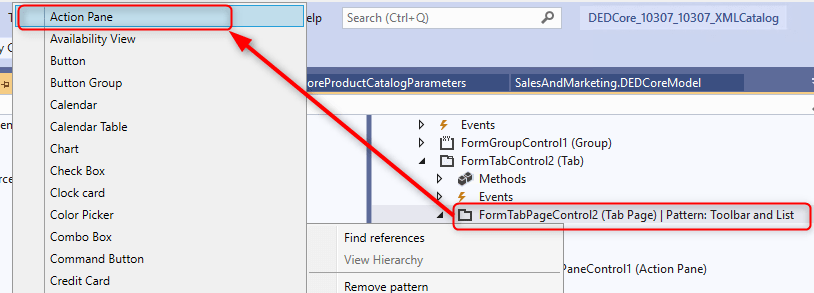

• Add a new Action Pane


• Under “Action Pane” add new “Button group”


• Insert a new data source

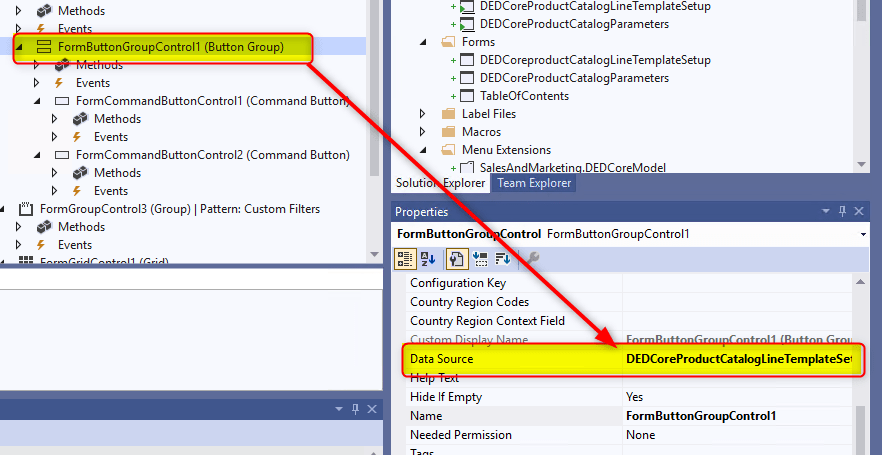

• Insert Data source in Button group property

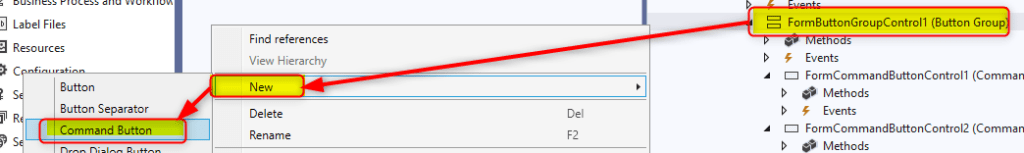

• Add a new “Command button”


• Set New on “Command Property”


• Add a new “Command button”

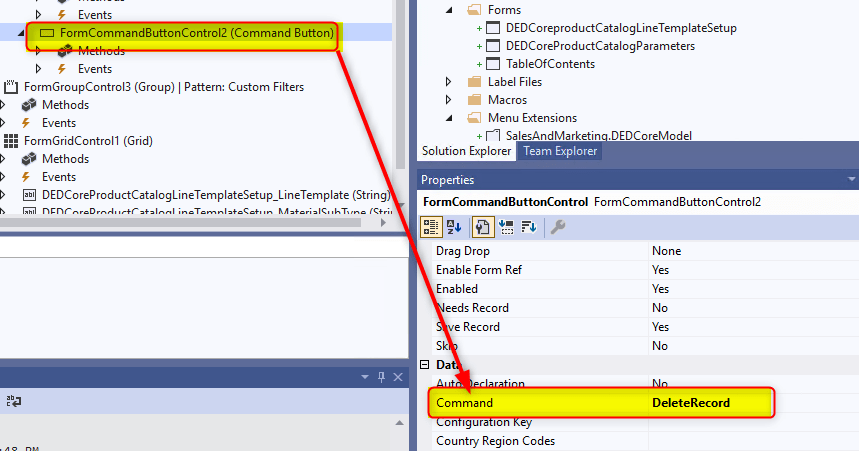

• Set “Delete record” on “Command Property”


• Add a new group

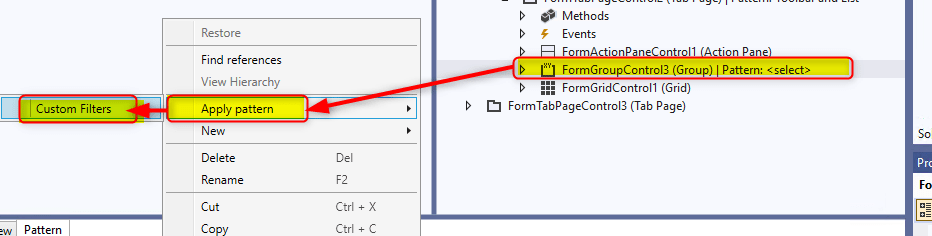

• Apply “Custom filter” pattern to the group


• Add a new Grid

• Add a new data source and add in the Datasource property of the grid

• Add data source fields in the grid


• If you want to add a new tab (eg. Setup2) repeat the procedure starting from “Adding new Tab Page”
• And this is the final result
