AX – D365FO – Find Roles related to a Duty

There are 2 ways to retrieve roles of a Duty.

The first is by going in AOT, the second is to do a SQL Query.

First Approach :

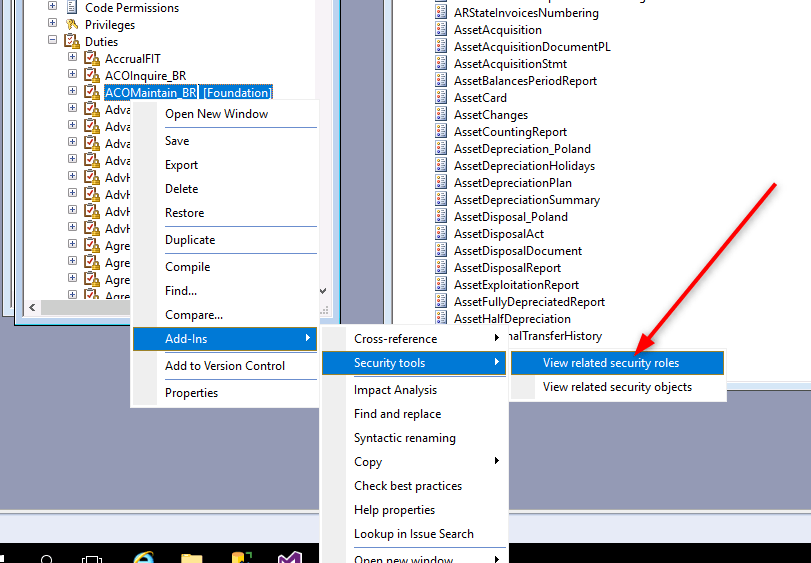

• Open AOT under the node Security –> Duties


Then search your duty, right click on it and go into Add-Ins –> Security tools –> View related security roles

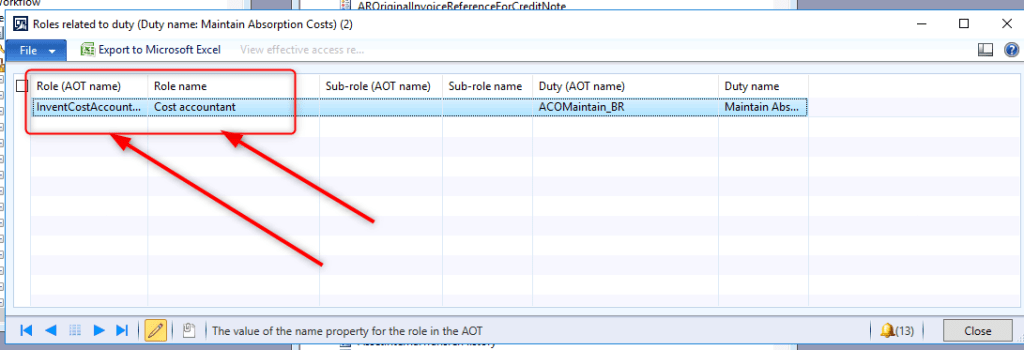

Here you can find the roles assigned to your duty

Second Approach :

• Do a SQL Query in your AX Database


SELECT T1.NAME,

       T1.ALLOWPASTRECORDS,

       T1.ALLOWCURRENTRECORDS,

       T1.ALLOWFUTURERECORDS,

       T1.DESCRIPTION,

       T1.AOTNAME,

       T1.ISENABLED,

       T1.CONTEXTSTRING,

       T1.RECVERSION,

       T1.RECID,

       T2.SECURITYROLE,

       T2.SECURITYSUBROLE,

       T2.VALIDFROM,

       T2.VALIDFROMTZID,

       T2.VALIDTO,

       T2.VALIDTOTZID,

       T2.RECVERSION,

       T2.RECID,

       T3.NAME,

       T3.ALLOWPASTRECORDS,

       T3.ALLOWCURRENTRECORDS,

       T3.ALLOWFUTURERECORDS,

       T3.DESCRIPTION,

       T3.AOTNAME,

       T3.ISENABLED,

       T3.CONTEXTSTRING,

       T3.RECVERSION,

       T3.RECID,

       T4.SECURITYROLE,

       T4.SECURITYTASK,

       T4.RECVERSION,

       T4.RECID,

       T5.NAME,

       T5.AOTNAME,

       T5.ISPERMISSIONSET,

       T5.DESCRIPTION,

       T5.TYPE,

       T5.ISENABLED,

       T5.RECVERSION,

       T5.RECID

FROM  [AX6_ERA_DEV_model].[dbo].SECURITYROLE T1 LEFT

OUTER

JOIN [AX6_ERA_DEV_model].[dbo].SECURITYSUBROLE T2 ON (T1.RECID=T2.SECURITYROLE) LEFT

OUTER

JOIN [AX6_ERA_DEV_model].[dbo].SECURITYROLE T3 ON (T2.SECURITYSUBROLE=T3.RECID) CROSS

JOIN [AX6_ERA_DEV_model].[dbo].SECURITYROLETASKGRANT T4 CROSS

JOIN [AX6_ERA_DEV_model].[dbo].SECURITYTASK T5

WHERE ((T1.RECID=T4.SECURITYROLE)

       OR (T3.RECID=T4.SECURITYROLE))

       AND ((T4.SECURITYTASK=T5.RECID)

       AND (T5.AOTNAME='AccrualFIT'))     //Write here your Duty AOT name
